RoastMaxTor
- COFFEE ROASTER -
The RoastMaxTor Precision Roaster offers the opportunity to buy and roast the best quality green coffee beans available.
Our Coffee Roasters roast from 100g to 1kg per cycle, enabling you to roast your own fresh artisan coffee at your location.
ROASTMAXTOR - SPECIFICATIONS |
||
| Main Frame | : | 304 Stainless Steel |
| Covering Material | : | All high-grade 304 stainless steel, and poly-carbonate glass |

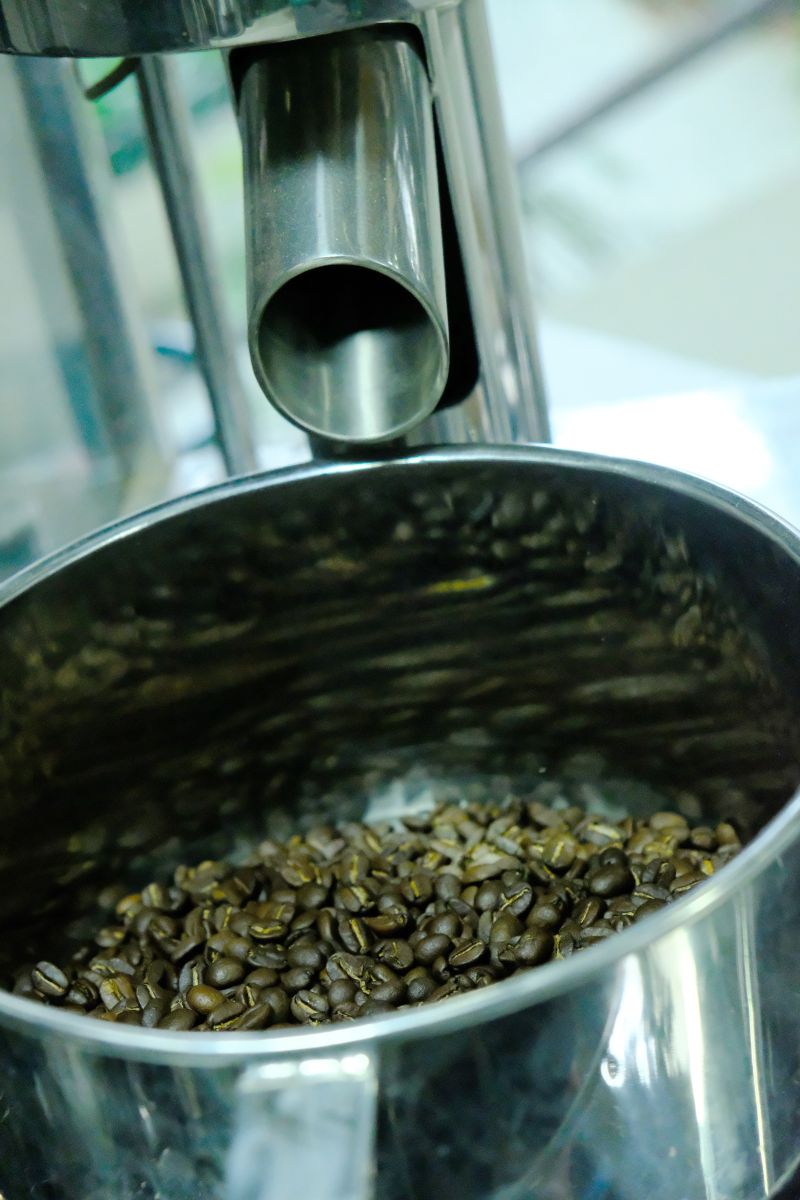

| Roasting and cooling system | : | high-grade 304 stainless steel, polished. |
| Design variety | : | Your Logo Cover Plates |
| Electric heating | : | Ceramic element |
| Cooling | : | Fan |
| AirSupply | : | Side channel blower |
| Controller | : | Delta PLC DVP-SS14 |
| Temperature Controller | : | Delta Temperature Controller DTB-4848 |
| Blower Speed Controller | : | Delta Inverter VFD007EL43A |
| User Interface | : | Delta HMI Touch Screen Panel |
| Roasting capacity | : | 100 – 1300 gram of raw coffee beans |
| Efficiency | : | 10 kg per hour |
| Electrical power supply | : | 1 x 240 volt, 32 amps 50 hz Secured with 40 amps Breaker |
| Power consumption | : | 4.5 KW |

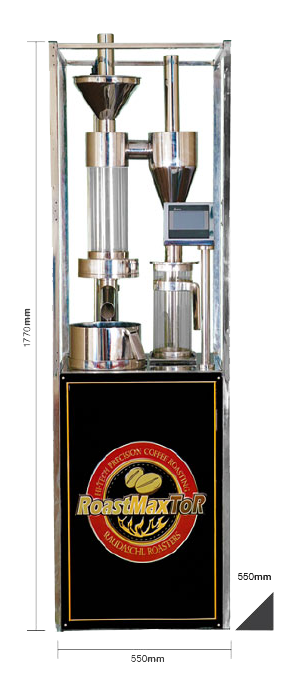

| Dimensions | : | 550 mm x 550 mm x 1770 mm (L x W x H) |
| Weight | : | 120kg |
All Electrical parts are CE. Technical modifications reserved |
||
ROASTMAXTOR - SPECIFICATIONS
Main Frame304 Stainless Steel
Covering Material
All high-grade 304 stainless steel, and poly-carbonate glass
Roasting and cooling system
high-grade 304 stainless steel, polished.
Design variety
Your Logo Cover Plates
Electric heating
Ceramic element
Cooling
Fan
AirSupply
Side channel blower
Controller
Delta PLC DVP-SS14
Temperature Controller
Delta Temperature Controller DTB-4848
Blower Speed Controller
Delta Inverter VFD007EL43A
User Interface
Delta HMI Touch Screen Panel
Roasting capacity
100 – 1300 gram of raw coffee beans
Efficiency
10 kg per hour
Electrical power supply
1 x 240 volt, 32 amps 50 hz Secured with 40 amps Breaker
Power consumption
6.5 KW
Dimensions
550 mm x 550 mm x 1770 mm (L x W x H)
Weight
120kg
All Electrical parts are CE. Technical modifications reserved
